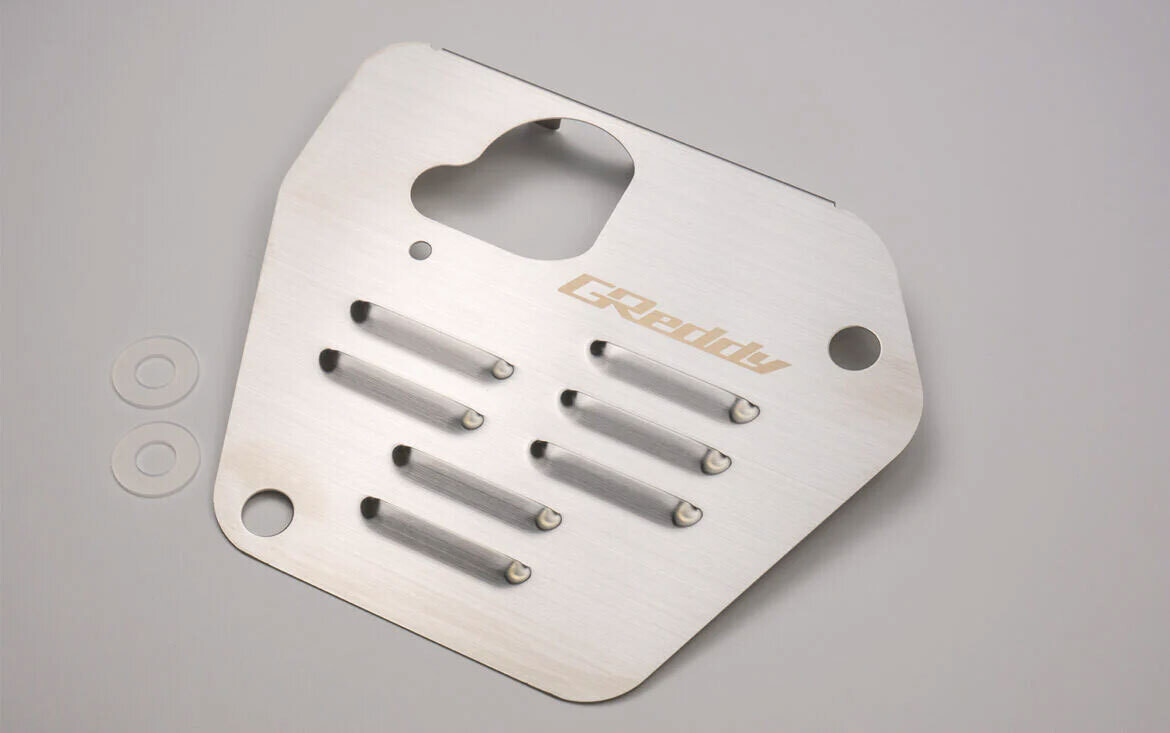

GReddy Oil Pan Baffle Plate for ZN8/ZD8

TOYOTA GAZOO Racing GR86/BRZ CUP certified parts

●The FA20/FA24 engine has a structure in which a large amount of engine oil accumulated in the oil pan flows into the front chain cover due to intense braking G when driving on a circuit. The oil pressure will drop, and in the worst case, the engine may blow.

●The GReddy oil pan baffle plate prevents the engine oil from becoming uneven during acceleration/deceleration and cornering. Designed to go back.

Specification

• Aluminum baffle plate with louvers
• Silver anodized finish
• With GReddy laser logo

Product Configuration

• Baffle plate body
• Silicon packing

[Compatible models] Toyota GR86 / Subaru BRZ

Compatible Model: ZN8 / ZD8
Engine Model: FA24 Year : 2021.10~ / 2021.08~
