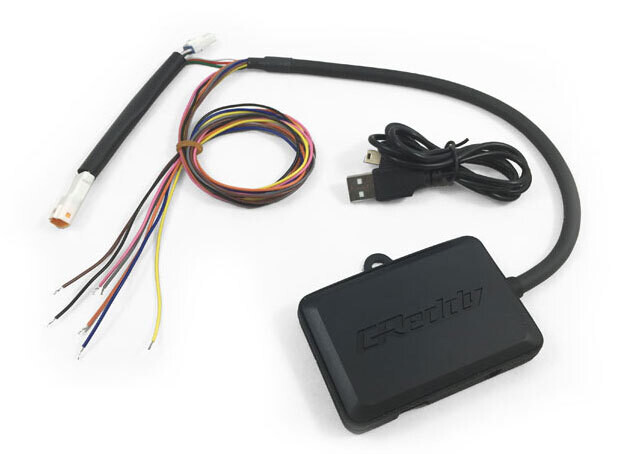

GReddy Profec MAP for Profec Boost controller
The GReddy Profec MAP connects to the current GReddy Profec and, through boost maps, provides even finer control over your vehicle’s boost pressure. Boost correction is not the only added function in the addition of the Profec MAP! The following features have been added:
This unit brings out the full performance of the GReddy Profec through its high-level functions that result in a more advanced boost.

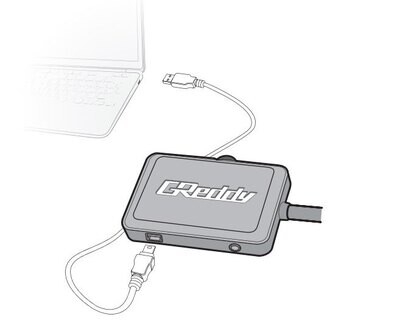

PC Connection
By using the USB cable (sold separately) and connecting to a PC all parameter settings and data logging features can be accessed.
■Boost Map Correction
Fine boost tuning settings are possible by the usage of the 10×10 boost maps.
■Boost Correction based on RPM, Throttle, Speed, Gear Position and Water Temp.
Boost Correction can be based off of any of the above 5 items.
▼Example 1:Boost can be lowered automatically if the engine is not in the defined ideal operating temperature range.
▼Example 2::Using the Gear Position, Boost can be set differently for each gear and RPM. This feature can be applied to ensure consistent boost in any gear and to suppress undesired wheel spin when in low gears.
■AUX input for switching system
Take advantage of the auxiliary input to activate the scramble Boost function (Switching Harness sold separately) and to change boost on the fly!
Boost Correction by RPM, Throttle Position, Speed, Gear Position, or Water Temp
Additional Profec monitoring and data logging via PC software
AUX input for Over Take Boost Function future using optional Remote Switching System
Plugs-in easily in between Profec Display/Control unit and Profec main unit
Additional connections depending on application.
PC Compatible (Profec MAP software) with use of mini-USB to USB cable (sold separately)
OS: (Japanese, English) Windows Vista, Windows 7 (32bit, 64bit)
CPU: 1GHz or more 32bit or 64bit processor
Memory: 1GB or more
HDD free space: 20MB or more
