HKS HIPERMAX S FULL COIL-OVER KIT : NISSAN SKYLINE (V36/CKV36/PV36/KV36)
+2

HKS HIPERMAX S FULL COIL-OVER KIT : NISSAN SKYLINE (V36/CKV36/PV36/KV36)

Home/Store/PARTS & ACCESSORIES/BRANDS/HKS/BROWSE BY PARTS/SUSPENSION
SKU HKS-80300-AN004
AU$3 450.00
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
HKS HIPERMAX S FULL COIL-OVER KIT : NISSAN SKYLINE (V36/CKV36/PV36/KV36)
Home/Store/PARTS & ACCESSORIES/BRANDS/HKS/BROWSE BY PARTS/SUSPENSION
Product Details
UPC: 80300-AN004
Brand: HKS

S

Code No. 80300-AN004

Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving.

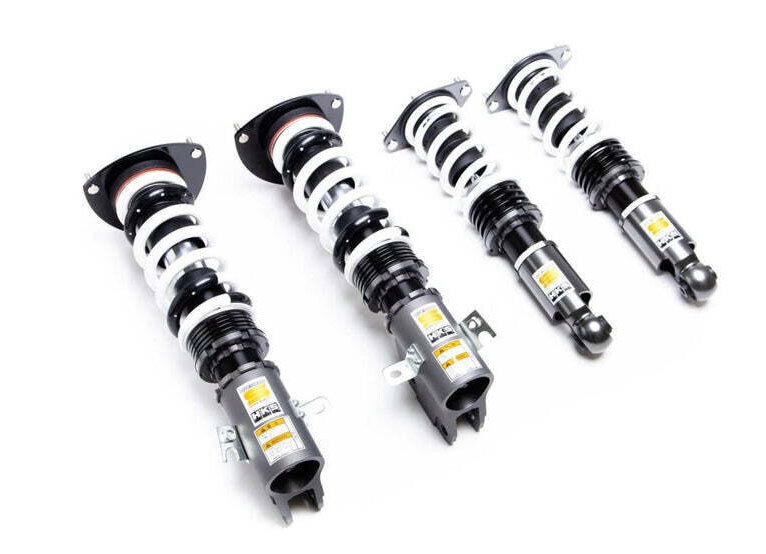

The model in the photo is V36.

Application

Engine VQ35HR / VQ37VHR / VQ25HR
Model Year 06/11 - 14/04
Remarks

Specification

FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket 〇 〇
Upper mount Rubber Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 684 ← 704 ~ 664 704 ~ 664
Against stock -35 ← -15 ~ -55 -15 ~ -55
REAR Ride height *1 669 ← 684 ~ 629 684 ~ 629
Against stock -43 ← -28 ~ -83 -28 ~ -83

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

F R
Spring rate N/mm(kgf/mm) 98 ( 10.0 ) 88 ( 9.0 )
Free height (mm) 220 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) -10 ( 1 ) -

Specification of damper

F R
Damping force (Rebound/Damping)N* 1015 / 427 584 / 319
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 52 / 47 78 / 69

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
406 ← 418 403 305 ← 316 286
Spring
Set length(mm)
212 ← 212 221 - - - -
Length to ride hight
adjuster (mm)
85 ← 97 73 48 ← 58 22
Lever ratio 1.69 1.52(spg) , 1.43(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information

F R
Vehicle weight kg 684 (870) 669 (720)
Tire size (Air pressure) kPa 245 / 40 - 19 ( 240 ) 245 / 40 - 19 ( 240 )
Wheel size 9 JJ × 19 inset 45 9 JJ × 19 inset 45
Alignment
(Toe/Camber)
Test data 0 mm / -1°15' in 0 mm / -2°15'
Standard value in 2 ~ 0 mm / -0°25' ± 0°45' in 5.6 ~ 0 mm / -0°55' ± 0°30'

* Test data at HKS.

Parts List * It may be changed without prior notice.


Point

The PVS and new needle shape have been improved for a suppler ride.

The amount of stroke and stroke volume have been reviewed to ensure a stable ride without losing the tire grip.

This HIPERMAX S surely ensures lowdown mechanism as the full

length adjustable coilover, moreover, the driving performance has been

improved to a level where the driver can enjoy cornering that only a

sport suspension can provide.

The rear damping force adjustment is inverted because the shape

of the body makes it difficult to access the shaft top. This allows

adjustment at the bottom of the damper.

Note that if the shock body length is lower than the limit, the

upper arm and body will be interfered at both front and rear.


IMAGE DISCLAIMER : Images displayed may not represent the actual product and are used for descriptive purposes only.
