HKS S-TYPE ENGINE OIL COOLER KIT : TOYOTA GR-YARIS (GXPA16)

Allows oil temperature management required for high power.

Without Bumper

With Bumper

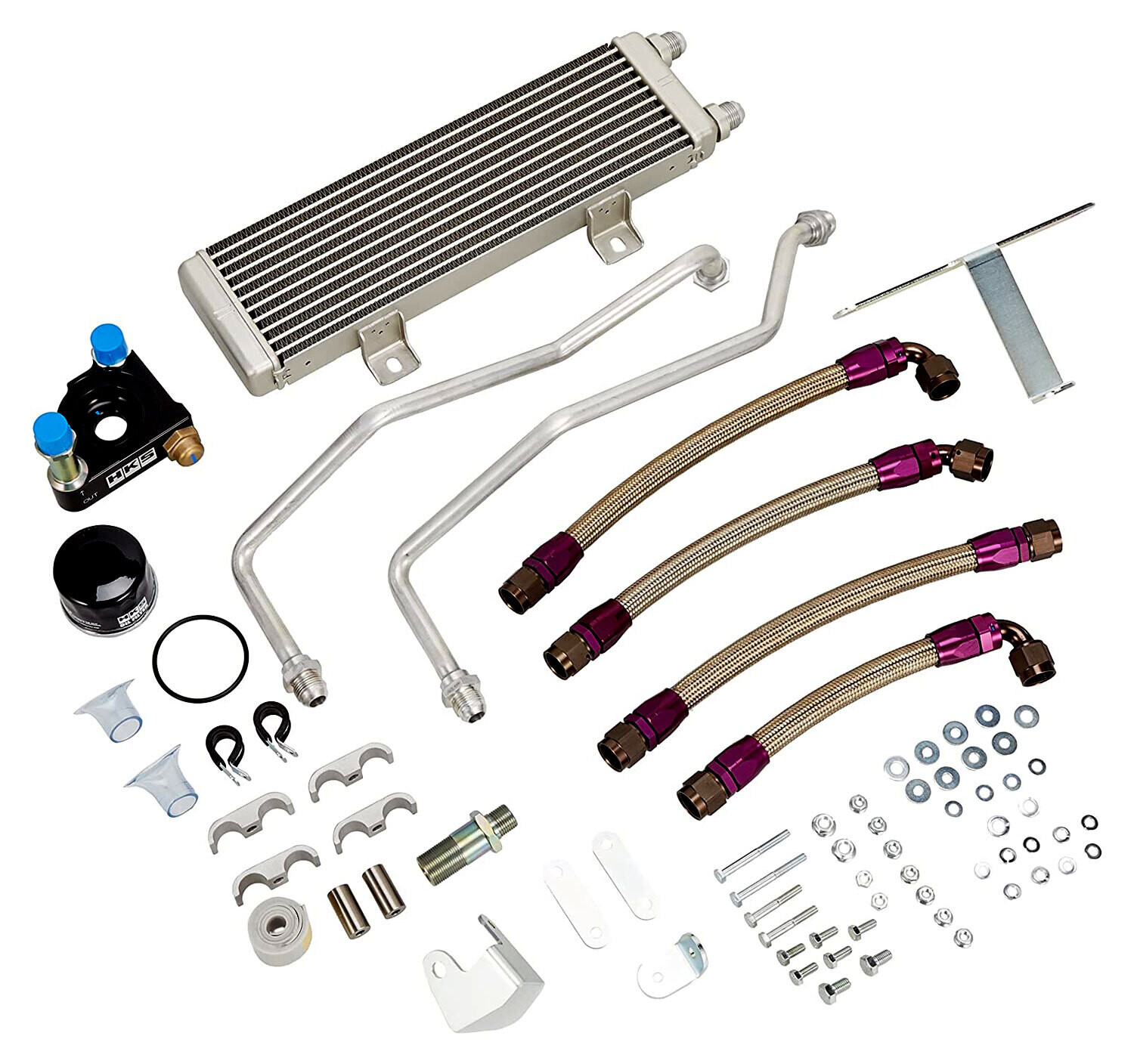

■Kit Includes

■Development Concept & Features

• Perfect Oil management with output increase modification.
• Provides a cooling performance that allows the vehicle to perform many laps.
• Traditional layout allowing both oil and water temperature control.
• Although Turn-Flow Type Core has small core surface for improved cooling performance.
• Oil aluminum pipes are a highly efficient style that makes effective use of limited space.

■HKS Test Data

Track Data

Test Vehicle

■Description

HKS has tested various ways that the danger of high chronic oil temperatures raises with GR Yaris, and HKS has developed a Turn-Flow Type oil cooler that allows continuous track driving. This provides competent oil management and continuous sustained performance.
The tests showed a clear high level of oil management, with about four times as many hours/miles driven in stock conditions. Authentic tests using real vehicles prove the high standards of HKS product.

Vehicle	Model	Engine	Model Year	Core Size・Row	Core Location	Type	Hose Size	Aluminum Air Guide	Code No.	Manual	Remarks
GR YARIS	GXPA16	G16E-GTS	20/09 -	412x114x40・	In front of the radiator	S type	#10		15004-AT013	1950.00	Standard Installation Time: 5~6 hours. Check the oil gauge and adjust the oil level to the correct level.
