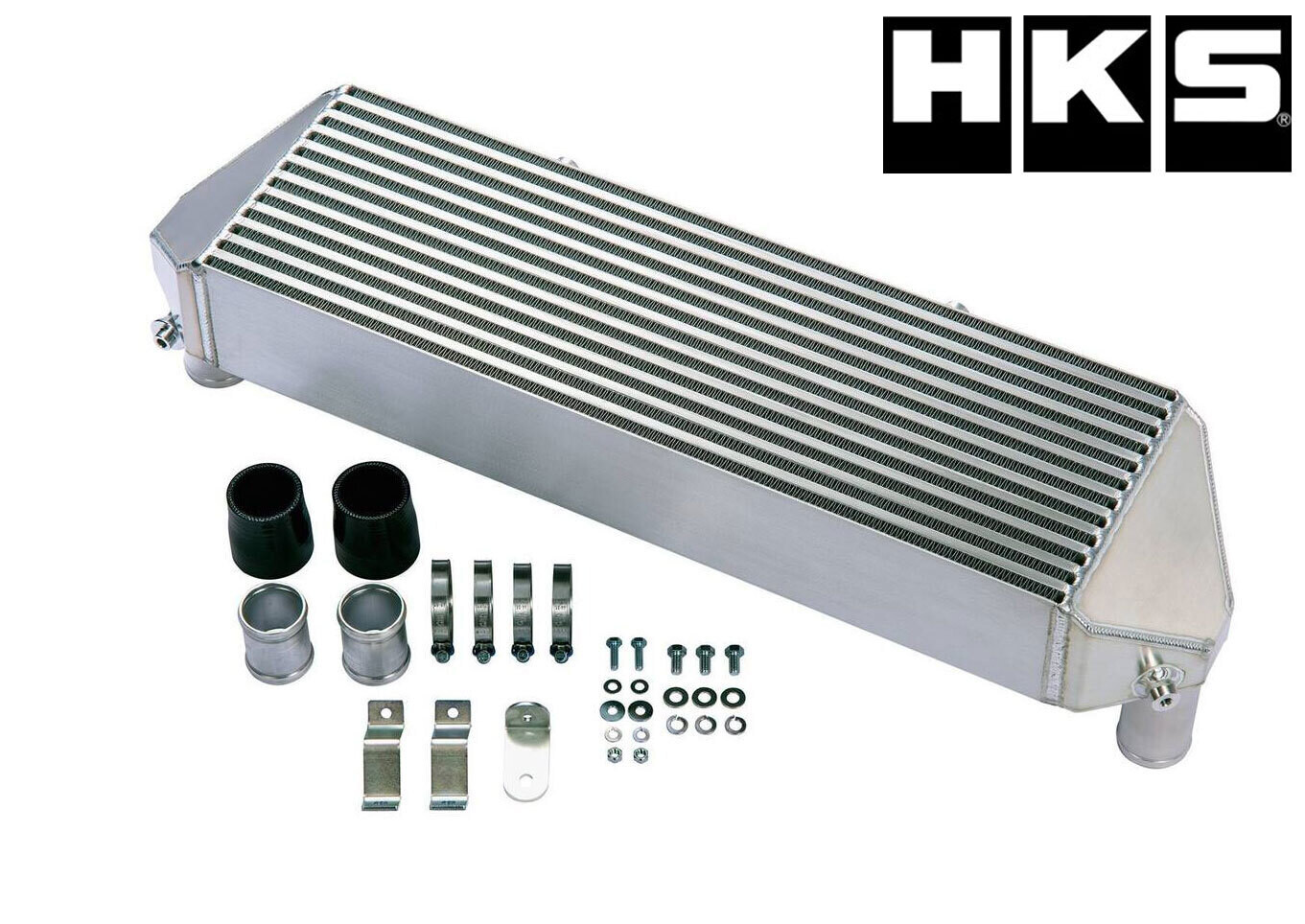

HKS TYPE-R INTERCOOLER KIT : TOYOTA GR-YARIS (GXPA16)

Code No. 13001-AT008

■Concept

• The concept is OEM fitment for GR Yaris but also improved cooling performance.
• Although it is a stock replacement, we designed it bigger for future power improvement. It is also effective when driving on the tracks. The use of a new multilayer core minimizes weight, reduces pressure loss, and improves cooling performance.

■In house test data

■Features

• It is a stock replacement but with increased height and thickness to provide improved cooling performance for modified high power GR Yaris.
• The core is thicker than stock, but the fin shape is optimized to deliver cooling performance and airflow through it.
• HKS intercooler core size is 645x205x105 (stock is 645x145x80). Made in Japan", laminated type core is used for reliability and performance.

At the mid to high rpm range (maximum power produced range), the HKS intercooler offers an excellent cooling performance. Increase vehicle performance while maintaining OEM fitment and advantage in terms of power and torque.

Test Vehicle

・Stock turbine & Super Turbo Muffler

Vehicle	Model	Engine	Model Year	Type	Core Size・Location	Type	Code No.	Manual	Remarks
GR YARIS	GXPA16	G16E-GTS	20/09 -	R type INTERCOOLER	645x205x105・Front mount (Factory replacement)	Multilayer Type	13001-AT008		Water spray bracket (13999-AT001) is required for use with stock intercooler water spray.
