86/BRZ PARTS
When first 86/BRZ was introduced it has attracted a great deal of automobile industry attention. And HKS soon acquired vehicles and started developing. We have entered D1 grand prix since then and have developed many parts.
We HKS as a total tuning parts maker could provide different tuning parts of category together. Here are some Step-Up menus for your 86/BRZ tuning.
86/BRZ PARTS CATEGORY
-
Superior exhaust system of high
response and cool sound -
HKS new suspension of single
tube and new M shaft design -
HKS intake will provide great
feeling of engine RPM rise -
To have the best performance
and support for your vehicles -
Cooling technology will allow
engine to perform at its best -
Next generation Supercharger
system for both power and
environmental -
Refined Power Refined by
the Latest Design GTIII Turbo -
Developed by taking experience
acquired through D1 and time
attack -
Other parts to improve the
performance for 86/BRZ
Which one do you prefer?
HKS 86 (ZN6) / BRZ (ZC6) PARTS LINE UP
| Code No. | Product Name | 2012/4～ 2016/8 |
2016/8～ | 2016/8～ | Remark |
| MT/AT | MT | AT | |||
| EXHAUST | |||||
|---|---|---|---|---|---|
| ●Muffler | |||||
| 32018-AT041V | LEGAMAX Sports S-Tail | 〇 | 〇 | 〇 | Main+Mid Pipe, Blue gradation exhaust tip |
|
32018-AT041 |
LEGAMAX Sports S-Tail | 〇 | 〇 | 〇 | Main+Mid Pipe, SUS exhaust tip |
| 32018-AT039 | LEGAMAX Premium (main) | 〇 | × | × | Only main muffler |
| 32018-AT058 | LEGAMAX Premium (main) | × | 〇 | 〇 | Only main muffler (For the late model) |
| 32018-AT040 | LEGAMAX Premium (main+mid-attachment) |
〇 | 〇 | 〇 | Main+Mid Pipe |
| 32016-AT123 | Hipower Muffler SPEC-L II | 〇 | 〇 | 〇 | Main + Center pipe Tail cover size:φ94 L=48, OPTION Tail Requirement (pcs):2 |
| 32016-BT001 | Hipower Muffler SPEC-L | 〇 | 〇 | 〇 | No ground clearance change |
| 32016-BT002 | Hipower Muffler | 〇 | 〇 | 〇 | Titanium tail can slide (20mm) ・Compatible with inner silencer 3306-RA072 Note; Closed sound level under US measurement method is 95dB. |
| 32016-BT003 | Hi-Power Single Racing Version FR-S W/silencer | 〇 | 〇 | 〇 | Available only for overseas markets. |
| 32016-CT001 | Hipower Muffler SPEC-L | 〇 | 〇 | 〇 | Limited in Quantity. Available Only for Overseas Markets |
| 32018-AF009 | LEGAMAX Sports (Dual) | Only for BRZ | × | × | ※Only for BRZ. Special garnish included. (Modification of factory bumper required) Not compatible with the late model. |
| ●Exhaust Manifold | |||||
| 33002-BT001 | SUS EXHAUST MANIFOLD Scion FR-S |
〇 | 〇 | 〇 | Available only for overseas markets. |
| ●SUS Front Pipe | |||||
| 33004-BT002 | SUS FRONT PIPE Scion FR-S |
〇 | 〇 | 〇 | Available only for overseas markets. |
| ●Exhaust Manifold + Metal Catalyzer | |||||
| 33005-AT007 | SUPER MANIFOLD with CATALYZER GT-SPEC |
〇 | 〇 | 〇 | 【GT-SPEC】Exhaust manifold is integraged with Metal CAT. Use with a factory front pipe. |
| 33005-AT006 | SUPER MANIFOLD with CATALYZER R-SPEC |
Only for MT | × | × | Only for 6MT. Front pipe with a straight type manifold and Metal CAT. Noise regulation is cleared only when installed with a factory exhaust system. |
| 33005-AF018 | SUPER MANIFOLD with CATALYZER BOXER Spec |
〇 | × | 〇 | This product includes only the exhaust manifold with catalyzer. (Flash Editor is NOT included.) |
| ●STAINLESS FRONT PIPE with Catalyzer | |||||
| 33004-BT003 | STAINLESS FRONT PIPE | 〇 | 〇 | 〇 | |
| Suspension | |||||
|---|---|---|---|---|---|
| 80310-AT001 | HIPERMAX R | 〇 | 〇 | 〇 | |
| 80300-AT001 | HIPERMAX S | 〇 | 〇 | 〇 | |
| 80260-AT003 | HIPERMAX G | 〇 | △ | △ | For the early model |
| 80230-KT001 | MAX IV GT | 〇 | 〇 | 〇 | ※Rubber upper mount for the front side. |
| 80260-AT007 | HIPERMAX G | × | 〇 | 〇 | For the late model. Note: For ZN6(86) registered
before Aug. 2016, this product does not meet the safety standard due to insufficient height of fogs and blinkers. |
| 80250-AT001 | MAX IV SP | 〇 | 〇 | 〇 | * Discontinued. |
| 80230-AT001A | MAX IV GT 20 SPEC | 〇 | 〇 | 〇 | * Discontinued.
Technical Info: Front / Rear Spring Rate: 5 / 5 (kg/mm) Spring Length: 170 / 170 (mm) Height: -17 / -16 (mm) Upper Mount: Pillow-ball / Rubber |
| 80230-AF012V | MAX IV GT Spec-A | △ | 〇 | 〇 | * Disconined.
Note: For ZN6(86) registered before Aug. 2016, this product does not meet the safety standard due to insufficient height of fogs and blinkers. |
| 80230-AT001 | MAX IV GT | 〇 | 〇 | 〇 | * Discontinued. |
| Intake | |||||
|---|---|---|---|---|---|
| 70020-AT115 | Racing Suction | 〇 | 〇 | 〇 | |
| 70018-AT006 | Premium suction kit | 〇 | × | 〇 | Suction Pipe + S. Hybrid Filter |
| 70025-AT001 | GT Suction | 〇 | Not
confirmed |
Not
confirmed |
Note: S. Hybrid Filter is not included in GT Suction. |
| 70026-AT001 | Carbon Suction Kit | 〇 | × | 〇 | |
| 70999-AT002 | AIR INTAKE DUCT | 〇 | 〇 | 〇 | |
| 70017-AT132 | SUPER AIR FILTER | × | 〇 | × | 6MT |
| 70017-AT120 | SUPER AIR FILTER | 〇 | × | 〇 | |
| 70017-AT127 | SUPER AIR FILTER | × | 〇 | × | * Discontinued.
6MT |
| Electronics | |||||
|---|---|---|---|---|---|
| 42015-AT104 | FLASH EDITOR | 〇 | 〇 | 〇 | For initial setting, Windows PC (Windows7,8,8.1,10)
and USB cable (A-micro B) are required. |
| 42015-KT001 | FLASH EDITOR Type-T | 〇 | － | － | Available only for Thailand and Taiwan markets. |
| 45002-AT013 | VAC type CFT | 〇 | 〇 | 〇 | |
| 44009-AK003 | OB-LINK TYPE-FA20 | 〇 | 〇 | 〇 | * Discontinued.
Only for 86/BRZ. OB-LINK unit, smart phone or tablet, and apps(iOS 6.1 or later & Android 2.33 or later) are required. |
| 44009-AK002 | OB-LINK TYPE-001 | 〇 | 〇 | 〇 | * Discontinued.
OB-LINK unit, smart phone or tablet, and apps (iOS 6.1 or later & Android 2.33 or later) are required. |
| Cooling | |||||
|---|---|---|---|---|---|
| 15004-AT012 | S TYPE OIL COOLER KIT
(Install to Inner side of Fender) |
× | 〇 | 〇 | For GT Supercharger system Pro Kit compatible.
Need radiator support and resin cover modification. |
| 15004-AT011 | S TYPE OIL COOLER KIT
(Install to Inner side of Fender) |
〇 | × | × | For GT Supercharger System Pro Kit.
Not compatible with BRZ equipped with an automatic transmission. Modification of a radiator support and resin cover is required. |
| 15004-AT010 | S TYPE OIL COOLER KIT | 〇 | 〇 | 〇 | For NA engine. Minor modification (bending an A/C pipe) is required. |
| Supercharger | |||||
|---|---|---|---|---|---|

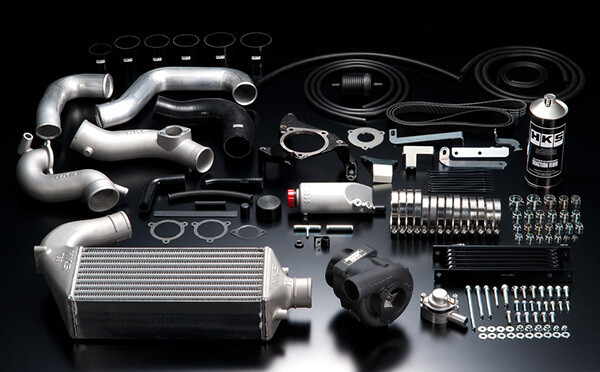

| 12001-AT012 | GT2 SUPERCHARGER SYSTEM
GTS7040L Pro kit |
〇 | 〇 | Front bumper
must be modified. |
Engine management part (ECU, etc.) is required.
FuelUpgrade Kit (14007-AT001) is available. |
| 13001-AT007 | Intercooler Upgrade Kit | 〇 | ― | ― | A kit upgraded from the previous kit. Some factory parts are required in order to install this kit. |
| 14007-AT001 | Fuel Upgrade Kit | 〇 | 〇 | ― | Flash Editor for this kit is not included. To use with
Flash Editor, setting by HKS Power Writer shop is required. (Not compatible with AT vehicles.) |
| 12002-KK001 | PULLEY UPGRADE KIT | 〇 | ― | ― | Available only for overseas markets. |
| 12002-KK002 | VERSION UP KIT to
GT S/C SYSTEM FR-S |
〇 | ― | ― | Available only for overseas markets. |
| Turbo | |||||
|---|---|---|---|---|---|
| 11001-AT005 | BOLT ON TURBO KIT | ○ | × | × | For MT, Extension with CAT.
* Compatibillity with the late model is confirmed with JDM model. * Compatible with BRZ. |
| 11001-KT001 | BOLT ON TURBO KIT | ○ | × | × | CATless Extension, Compatibility with the late model
is confirmed only with JDM model. |
| 11999-AT001 | OIL PAN | ○ | ○ | ○ | For BOLT ON TURBO |
| 11999-AT002 | Extension with catalytic converter | ○ | ○ | ○ | For use with Bolt ON Turbo Kit |
| 14011-AT001 | EXHAUST JOINT PIPE | ○ | ○ | ○ | For use with Bolt ON Turbo Kit
Size: φ60 |
| Engine | |||||
|---|---|---|---|---|---|
| 23011-AT003 | COMPLETE ENGINE
FA20 2.2L STEP1 |
〇 | 〇 | 〇 | |
| 23011-AT004 | COMPLETE ENGINE
FA20 2.2L STEP2 |
〇 | 〇 | 〇 | |
| 23011-AT005 | COMPLETE ENGINE
FA20 2.2L STEP3 |
〇 | 〇 | 〇 | To be released July 2020
The above FA engine camshaft is designed fot FA20 (A to D). To be confirmed for later models. |
| 23011-AT006 | COMPLETE ENGINE
FA20 2.1L STEP 0 HIGH-COMP |
〇 | 〇 | 〇 | |
| 21004-AT002 | FA20 2.1L kit | 〇 | 〇 | 〇 | Forged Piston Kit + I-beam Con'rod + Forged Crankshaft |
| 21004-AT003 | FA20 2.1L KIT (LOW COMP)
STEP1 |
〇 | 〇 | 〇 | FORGED PISTON KIT + I-BEAM CON'ROD + FORGED CRANKSHAFT |
| 21004-AT004 | PISTON FULL KIT FA20 2.1L
LOW-COMP STEP2 |
〇 | 〇 | 〇 | Forged Low-comp Piston Co ＋ I-beam Billetn'rod
＋ Forged Crankshaft |
| 21003-AT003 | FORGED PISTON KIT | 〇 | 〇 | 〇 | Forged Piston + Ring + Pin |
| 21003-AT004 | FORGED PISTON KIT
(LOW COMP) |
〇 | 〇 | 〇 | FORGED PISTON + PISTON PIN + PISTON RING |
| 23004-AT001 | I-BEAM CON'ROD | 〇 | 〇 | 〇 | Forged I-beam Con'rod |
| 23004-AT002 | CON'ROD SET FA20 I-BEAM
STEP2 |
〇 | 〇 | 〇 | I-beam billet type, 22mm pin, Only for 2.1L Kit |
| 23006-AT002 | FORGED CRANKSHAFT | 〇 | 〇 | 〇 | Stroke: 90mm |
| 23001-AT002 | Strengthen metal head
gasket kit t=0.5 |
〇 | 〇 | 〇 | Fro NA engine. Gaskets for LH & RH are included.
Opposed bead stopper type |
| 23001-AT003 | Strengthen metal head
gasket kit t=0.7 |
〇 | 〇 | 〇 | For turbo tuned engine. Gaskets for LH & RH
areincluded. Opposed bead stopper type |
| 23001-AT004 | Strengthen metal head
gasket kit t=1.0 |
〇 | 〇 | 〇 | For turbo tuned engine. Gaskets for LH & RH
are included. Opposed bead stopper type |
| 23002-AT001 | GROMMET TYPE HEAD GASKET t=0.8 | 〇 | 〇 | 〇 | |
| 23002-AT002 | GROMMET TYPE HEAD GASKET t=1.2 | 〇 | 〇 | 〇 | |
| 22002-AT005 | Camshaft IN & EX SET
IN 260°EX 266° |
〇 | × | × | For 86/BRZ Applied A Model.
HKS Capacity Upgrade Kit (21004-AT002) must be used together. |
| 22002-AT006 | Camshaft IN & EX SET
IN 260°EX 266° |
× | ○ | ○ | For 86/BRZ Applied B -E Models.
HKS Capacity Upgrade Kit (21004-AT002 or 21004-AT003) is required. |
| 24996-AK030 | FINE TUNE V-BELT/
6PK2075 |
〇 | 〇 | 〇 |
| Power Train | |||||
|---|---|---|---|---|---|
| 26010-AT001 | LA clutch kit | Only for MT | Under
development |
― | Single Plate |
| Engine/Oil Filter | |||||
|---|---|---|---|---|---|
| 52001-AK109 | SUPER OIL Premium
0W-25 20L |
〇 | 〇 | 〇 | Equivalent to a stock viscosity |
| 52001-AK108 | SUPER OIL Premium
0W-25 4L |
〇 | 〇 | 〇 | Equivalent to a stock viscosity |
| 52001-AK107 | SUPER OIL Premium
0W-25 1L |
〇 | 〇 | 〇 | Equivalent to a stock viscosity |
| 52009-AK005 | OIL FILTER (M20) TYPE-1 | 〇 | 〇 | 〇 | M20×P1.5 |
| 24003-AK002 | Billet Oil Filler Cap | 〇 | 〇 | 〇 | Cap's color: Red |
| Brake Fluid/Gear Oil/Diff Oil | |||||
|---|---|---|---|---|---|
| 52004-AK003 | G-900 75W-90 1L | 〇 | 〇 | 〇 | Gear oil for 6MT Stock oil: MG Gear Special II 75w90 |
| 52004-AK003 | G-900 75W-90 1L | 〇 | 〇 | 〇 | Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use. |
| 52004-AK005 | G-1000 75W-100 1L | 〇 | 〇 | 〇 | Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use. |
| 52004-AK007 | G-1200 75W-120 1L | 〇 | 〇 | 〇 | Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use. |
| 52004-AK009 | G-1400 75W-140 1L | 〇 | 〇 | 〇 | Diff Oil Stock oil: Hypoid Gear SX75w90 Select one
according to the purpos of use. |
| Spark plug | |||||
|---|---|---|---|---|---|
| 50003-M50HL | SUPER FIRE RACING M50HL | 〇 | 〇 | 〇 | 4 plugs required. Stock: #9 DENSO ZXE27HBR8 |
| 50003-M45HL | SUPER FIRE RACING M45HL | 〇 | 〇 | 〇 | 4 plugs required. Stock: #9 DENSO ZXE27HBR8 |
| Spark plug | |||||
|---|---|---|---|---|---|
| 51007-AK401 | HKS CAR FLOOR MAT | 〇 | 〇 | 〇 | For RIGHT-hand drive car.
Includes 2 pcs for the front. |
| 70027-AT001 | NANO CABIN FILTER | 〇 | 〇 | 〇 | |
| 15009-AK005 | RADIATOR CAP | 〇 | 〇 | 〇 | N-type
108kPa (1.1kgf/cm2) |
| 50004-AK002 | Plug Wrench Set for FA20/24 | 〇 | 〇 | 〇 |
